Modeling¶

This document describes the carculator_bus model, assumptions and inventories as exhaustively as possible.

Overview of carculator_bus¶

carculator_bus is an open-source Python library. Its code is publicly available via its Github repository. You can also download an examples notebook, that guides new users into performing life cycle analyses. The tool generates bus inventories for different powertrain types, size classes, and years of manufacture.

Vehicle modelling¶

The modelling of vehicles along powertrain types, time and size classes is described in this section. It is also referred to as foreground modelling.

Powertrain types¶

carculator_bus can model the following powertrain types:

• Diesel-run internal combustion engine vehicle (ICEV-d)

• Gas-run internal combustion engine vehicle (ICEV-g)

• Diesel-run hybrid electric vehicle (HEV-d)

• Battery electric vehicle (BEV):

  • overnight charging at depot (BEV-depot)

  • opportunity charging (BEV-opp)

  • motion-charging (BEV-motion), also commonly referred to as trolleybuses

• Fuel cell electric vehicle (FCEV)

Size classes¶

Several size classes are available for each powertrain type, as indicated in Table 1. Some powertrain-size class combinations are not commercially available or technologically mature and are therefore not considered.

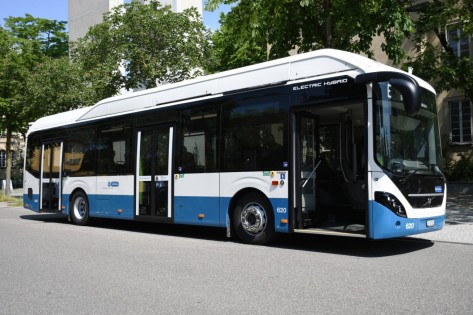

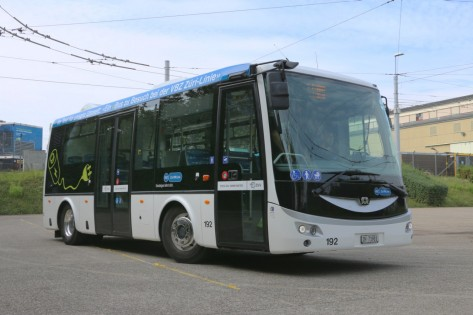

Example of a midibus, 9m and a single deck, city bus, 13m

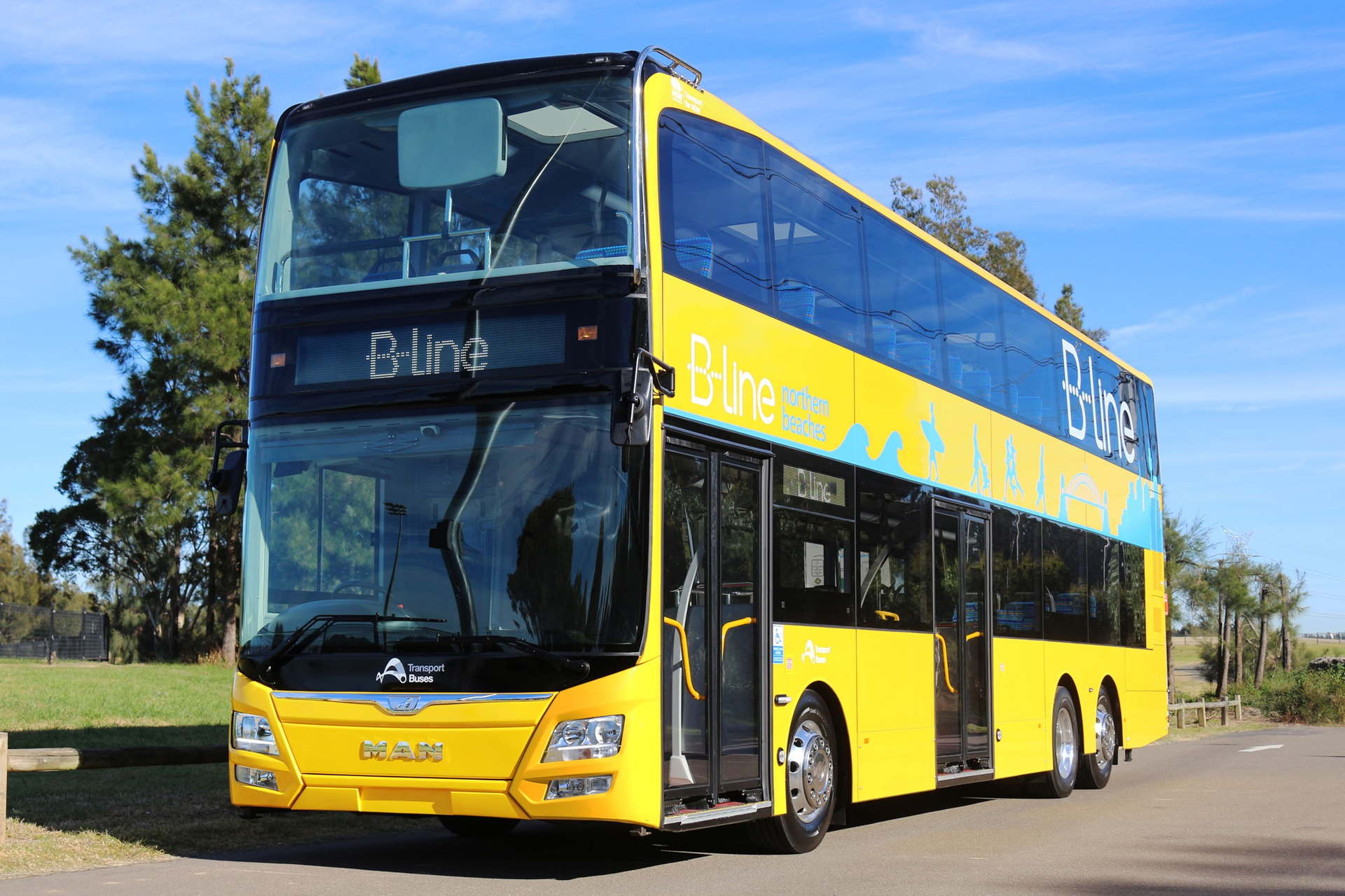

Example of a double deck, city bus, 13m and a single deck, coach bus, 13m

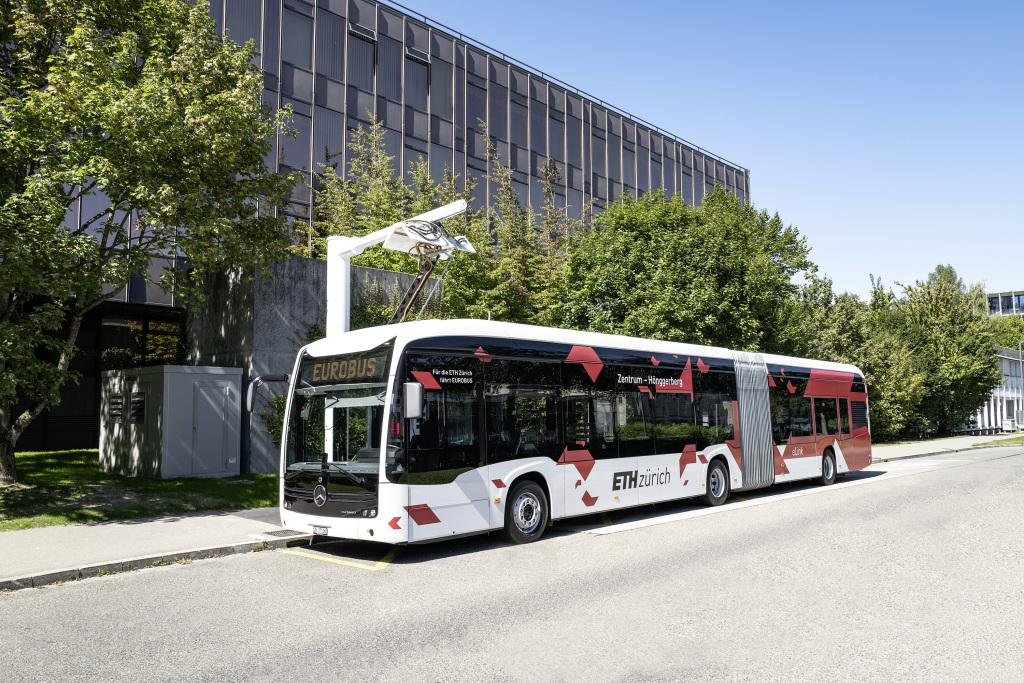

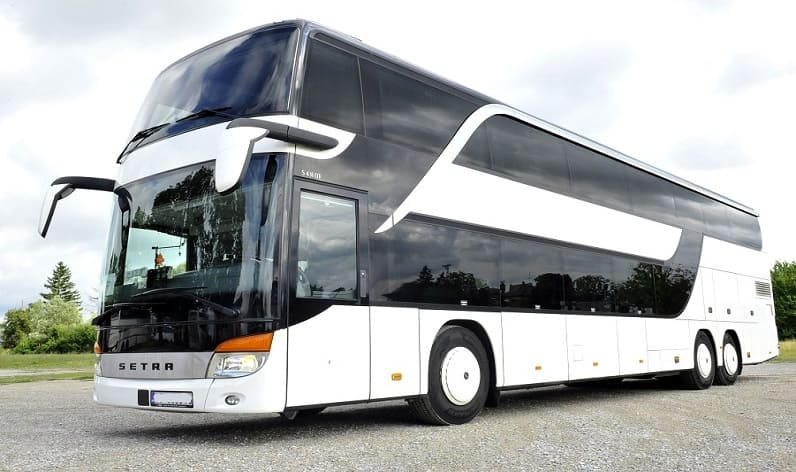

Example of double deck, coach bus, 13m and a single-deck city bus, 18m

Manufacture year and emission standard¶

For ICE vehicles, several emission standards are considered. For simplicity, it is assumed that the vehicle manufacture year corresponds to the registration year, as indicated in Table 2.

Modelling considerations applicable to all vehicle types¶

Sizing of the base frame¶

The sizing of the base frame is mainly based on p. 17-19 of [Nikolas and others, 2015]. Detailed weight composition is obtained for a Midibus, 12t and a Single deck, coach, 19t. Curb mass is obtained for all size classes. The rest being adjusted function of the gross mass, as indicated in Table 3. These bus models correspond to the baseline year of 2010. A 2% light weighting factor, as shown in the same report, is applied to represent the industry’s efforts in reducing vehicle weight in 2020.

The following components are common to all powertrains:

• Frame

• Suspension

• Brakes

• Wheels and tires,

• Electrical system

• Transmission

• Other components

Other size-related parameters¶

Passenger occupancy is essential, as environmental impacts are normalized to a passenger-kilometer unit. The current version of Mobitool factors v.2.1 [BAFU, 2020] uses the following occupancy values:

• “City bus”: 10 passengers

• “Autocar” (coach): 21 passengers

• “Trolleybus” (18m): 19 passengers

Similar values are used for “Single deck, city bus, 13m”, “Single deck, coach, 13m” and “Single deck, city bus, 18m” respectively. But the following occupancy values are also inferred for the remaining size classes:

• Midibus, 9m: 5 passengers (based on a 16% load factor for “Single deck, city bus, 13m”)

• Double deck, city bus, 13m: 13 passengers (based on a 16% load factor for “Single deck, city bus, 13m”)

• Double deck, coach bus, 13m: 26 passengers (based on a 38% load factor for “Single deck, coach, 13m”)

Regarding the expected lifetime of the vehicles, the Swiss vehicles registry MOFIS from the Swiss Federal Road Office [ASTRA, 2021] is used. Average lifetime values for decommissioned buses in Switzerland are derived and presented in Table 4. Vehicles with a lifetime below ten years or above 30 years are considered outliers and omitted. Because the lifetime values obtained are very close to one another for all bus types but trolleybuses, 14 years is considered for those. For trolleybuses, the average value obtained is 21 years, but the sample of decommissioned vehicles is small (3). However, all of them were decommissioned at least after 20 years of use. Moreover, out of the 321 trolleybuses still in operation in 2021, a third are already 14 years or older. Hence, a lifetime value of 20 years seems representative.

To estimate the annual mileage driven by the different bus types, the amount of vehicle- kilometers driven by buses and trolleybuses is compared with the number of corresponding vehicles in Switzerland for that same year, as provided by the Swiss Federal Statistical Office [SFO, 2021]. The results of this comparison are shown in Table 5.

Based on this data, an annual mileage of 50’000 km is considered for all bus types.

Other size-related parameters are listed in Table 6. Some of them have been obtained and/or calculated from manufacturers’ data, which is available in Annex C of this report.

The number of axles influences several aspects of the bus’s performance, notably its overall rolling resistance and the emissions associated with tire, brake, and road wear. The rolling resistance is calculated considering the number of axles, the relative load per axle, the number of tires per axle, and the driving mass of the vehicle, as presented in the documentation of VECTO [Commission, 2018].

Auxiliary power demand¶

The auxiliary power demand comprises the base power demand, the power demand from the battery management system, and the power demand from the HVAC system.

Base power demand¶

The auxiliary power base demand represents the power drawn from operating non-traction equipment such as the air compressor, the ticket vending machines, trip information displays, the steering compressor, etc. [Jari and others, 2019] estimate the base power load of a regular 13m-long single-decker. Considering the air compressor, the steering and braking systems, and other devices, the instant base power load ranges between 2 and 7 kW (as not all devices work simultaneously). [Dietmar and others, 2018] confirm the value of 7 kW, but only when all devices work simultaneously. In the present study, a further assumption is made that such values for the base power demand are probably correlated to the size of the vehicle, as well as to the type of use (e.g., coach buses do not need to open and close doors as frequently as do urban buses). Hence, the values presented in Table 7 are considered.

Battery management system power demand¶

According to [Dietmar and others, 2018], the battery management system requires 2.75 kW on hot summer days to cool the battery down and 0.5 kW on cold winter days to keep it warm. The average monthly daytime temperature for Switzerland is used (i.e., 12 values for the year) together with the values mentioned above (i.e., 2.75 kW and 0.5 kW) to calculate the additional load from the battery management system when the ambient temperature is above 20 degrees Celsius and below 5 degrees Celsius, respectively.

HVAC power demand¶

Estimating heating and cooling needs is a complicated matter, and unfortunately, it is also essential for BEV buses. In this study, a simplified approach is used. The following relation between HVAC power draw and ambient temperature from [Jari and others, 2019] is used, based on a 24 kW HVAC system fitted on a 12m city bus in Finland.

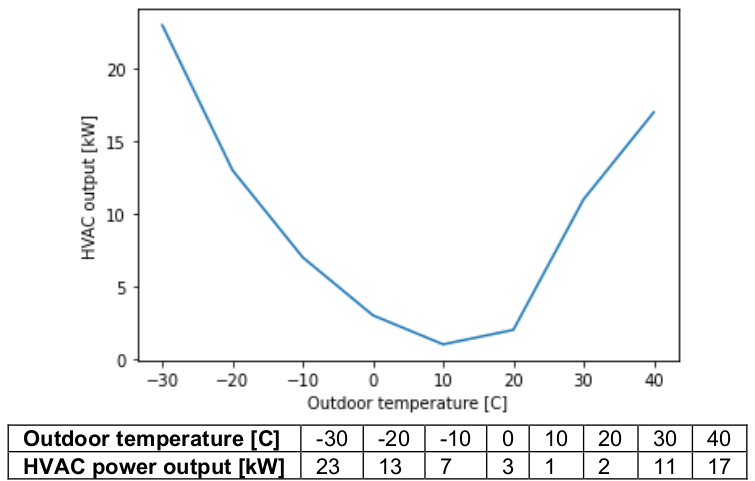

The HVAC system is sized according to the bus size class (i.e., from 10 kW for the midibus to 24 kW for the double-deck or articulated buses). This curve is adapted to the different bus size classes using the power load-to-maximum HVAC power ratio depicted above.

For BEV-buses, the HVAC is fitted with a heat pump, with the following Coefficients of Performance (CoP), taken from [Soo and others, 2015]:

• CoP of 2.3 for heating

• CoP of 1.3 for cooling

For ICE buses, it is assumed that the excess heat from the engine is sufficient to warm the passengers’ cabin to a comfortable temperature.

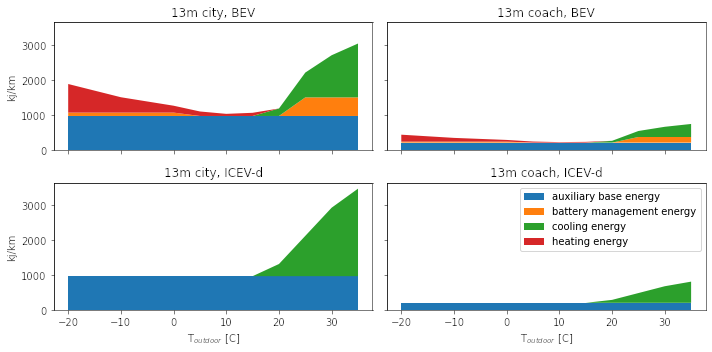

Figure 2 compares the different auxiliary energy components between a 13m single-deck BEV and ICEV-d bus for city and intercity use, the outdoor ambient temperature function.

Because the auxiliary energy depends on time and not on distance, it is more of an issue for city buses when normalized per km, as they have an average speed of 2-to-3 times as low as that of a coach bus.

However, buses do not constantly operate at -20°C or +30°C. This is why pre-set monthly daylight average temperature series are used.

But does this matter compared to the traction energy?

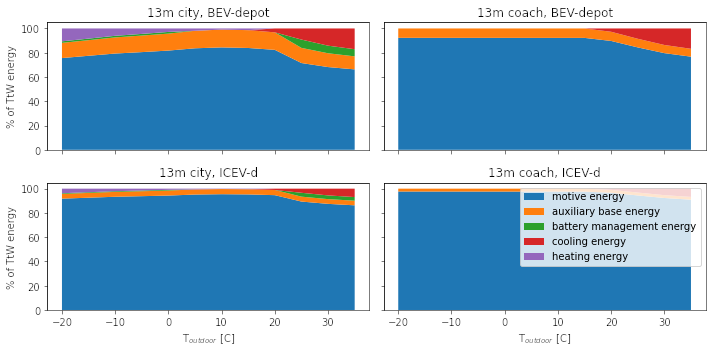

Figure 4 shows the energy consumption [1] of a 13m-long single-deck bus for urban and intercity use, including the traction energy. The values are normalized to one vehicle- kilometer as a function of the ambient temperature.

It seems that the power draw from the HVAC system can potentially be an issue, but primarily for urban electric buses and, to a lesser extent, inter-city electric buses (provided they are a viable option, which they are not currently). It seems auxiliary energy represents 25% of the tank-to-wheel energy consumption in normal conditions and goes up to 30% and 40% in very cold and hot conditions, respectively. This is as much energy not available for traction purposes (i.e., which directly affects the vehicle’s range autonomy).

Abrasion emissions¶

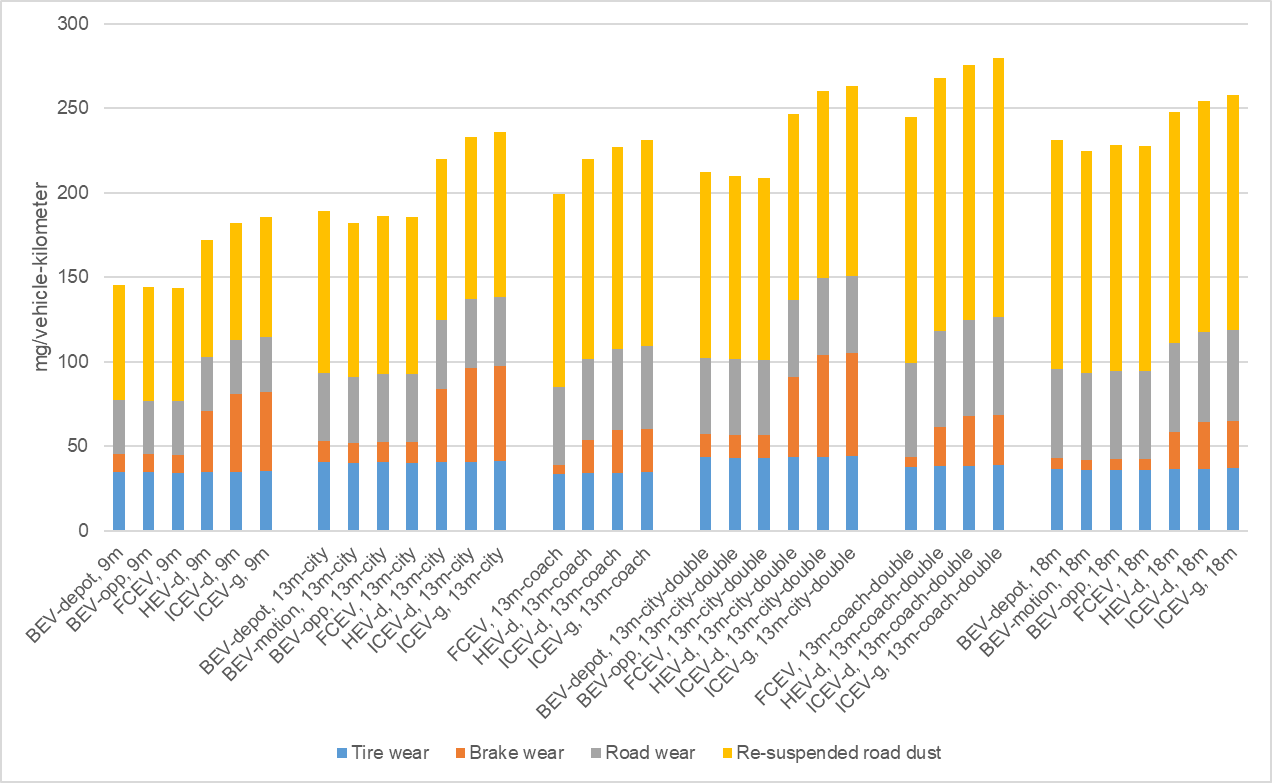

Figure 5 shows the calculated abrasion emissions for buses in mg per vehicle-kilometer, following the approach presented in Section I.C.5.b.

Modelling approach applicable to internal combustion engine vehicles¶

Traction energy¶

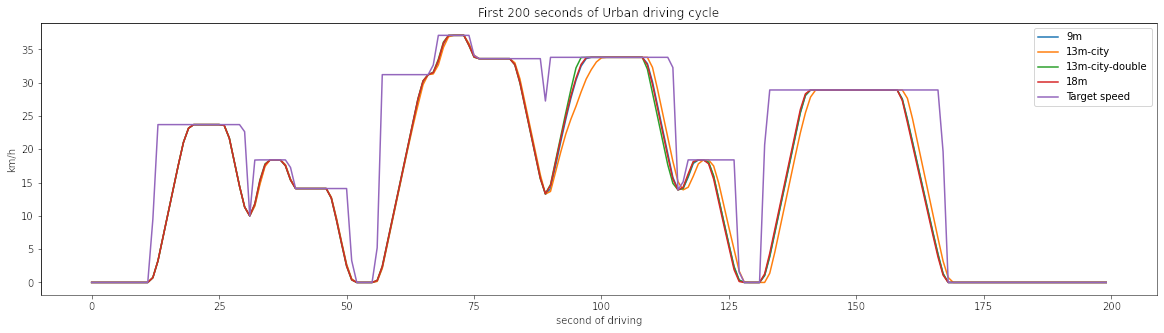

The traction energy for city buses is calculated based on the “Urban” driving cycle for buses provided by VECTO [Commission, 2018]. Simulations in VECTO are run with buses modeled as closely as possible to those of this study to obtain the performance along the driving cycle (e.g., speed, friction losses, and fuel consumption, among others). Figure 6 shows the first two hundred seconds of that driving cycle, distinguishing the target speed from the actual speed managed by the different vehicles. The power-to-mass ratio influences how much a vehicle manages to comply with the target speed.

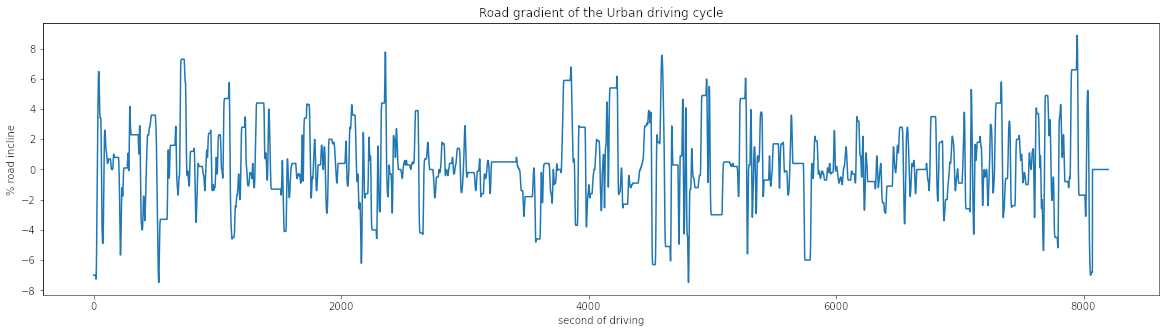

Road gradients are also considered. Figure 7 shows the road gradient profile of the urban driving cycle.

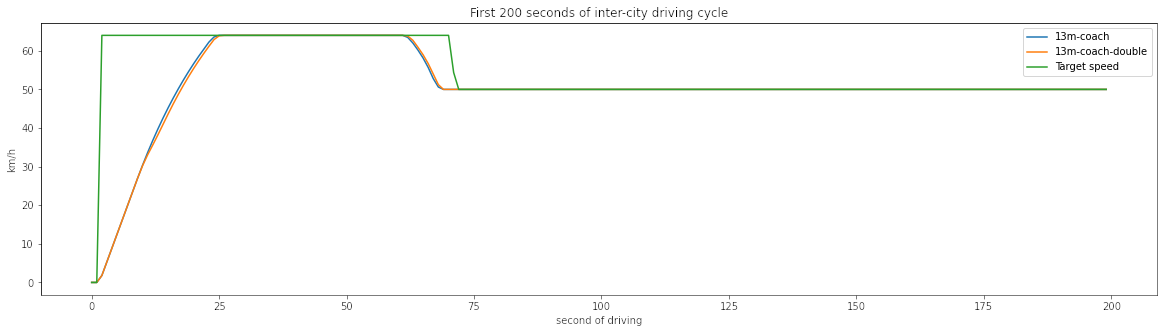

For coach buses, VECTO’s “Intercity” driving cycle is used. This cycle has fewer stops and less fluctuation in terms of speed levels, and it also has a higher average speed level and lasts much longer. The first two hundred seconds of that driving cycle are depicted in Figure 8.

Table 8 compares some of the parameters of both driving cycles.

The energy consumption model is similar to that of passenger cars: the sum of the different resistances at the wheel is calculated, after which friction-induced losses along the drivetrain are considered to obtain the energy required at the tank level.

VECTO’s simulations are again used to calibrate the engine and transmission efficiency of diesel and compressed gas buses. Similar to the modeling of delivery, medium- and heavy-duty trucks, the relation between the efficiency of the drivetrain components (i.e., engine, gearbox, and axle) and the power load-to-peak-power ratio is used.

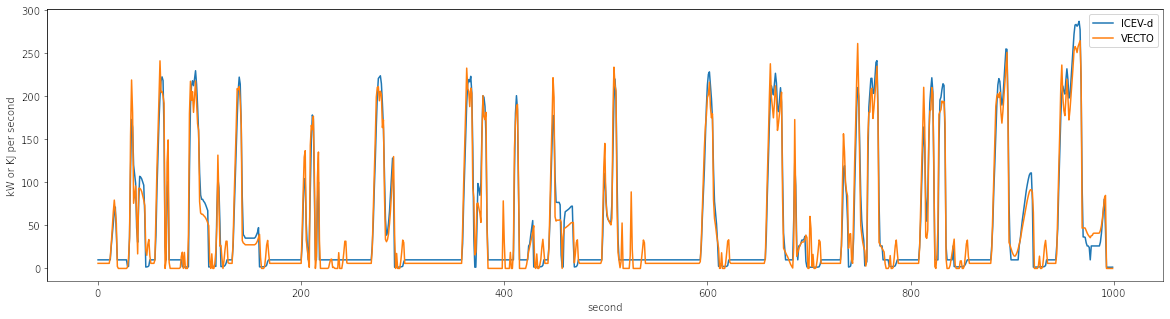

A calibration exercise with VECTO for the diesel-powered 13m city bus is shown in Figure 9. After calibration, the tank-to-wheel energy consumption value obtained from VECTO and carculator_bus for diesel-powered buses differ by less than 1 percent over the entire driving cycle.

Unfortunately, VECTO does not have a model for compressed gas-powered buses. Therefore, correction factors for fuel efficiency relative to diesel buses are derived from HBEFA 4.1 and presented in Table 9. They are calculated from the average difference in fuel efficiency between compressed gas and diesel buses across similar traffic situations and size classes.

Exhaust emissions¶

As with passenger cars and trucks, several fuel-related emissions other than CO2 or SO2 are considered. The emission factors of the HBEFA 4.1 database are used.

For buses, two sources of emissions are considered:

• Exhaust emissions: emissions from the combustion of fuel during operation. Their concentration relates to fuel consumption and the vehicle’s emission standard.

• Non-exhaust emissions: brake, tire, and road wear emissions, as well as emissions of refrigerant and noise.

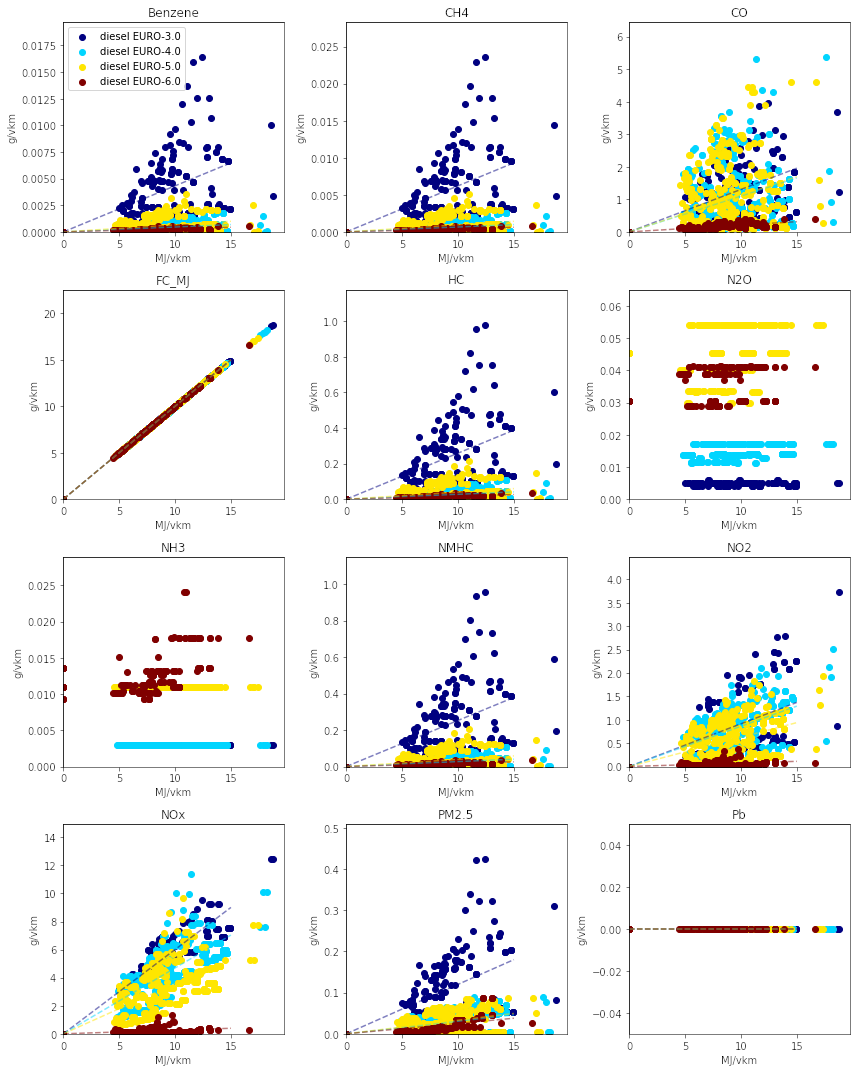

For exhaust emissions, factors based on the fuel consumption are derived by comparing emission data points for different traffic situations (i.e., grams emitted per vehicle-km) in free- flowing driving conditions, with the fuel consumption corresponding to each data point (i.e., MJ of fuel consumed per km), as illustrated in Figure 10 for a diesel-powered engine. The aim is to obtain emission factors expressed as grams of a substance emitted per MJ of fuel consumed to model emissions of buses of different sizes and mass operating on different driving cycles.

Using these fuel-based emissions factors, emissions for each second of the driving cycle for each substance are calculated.

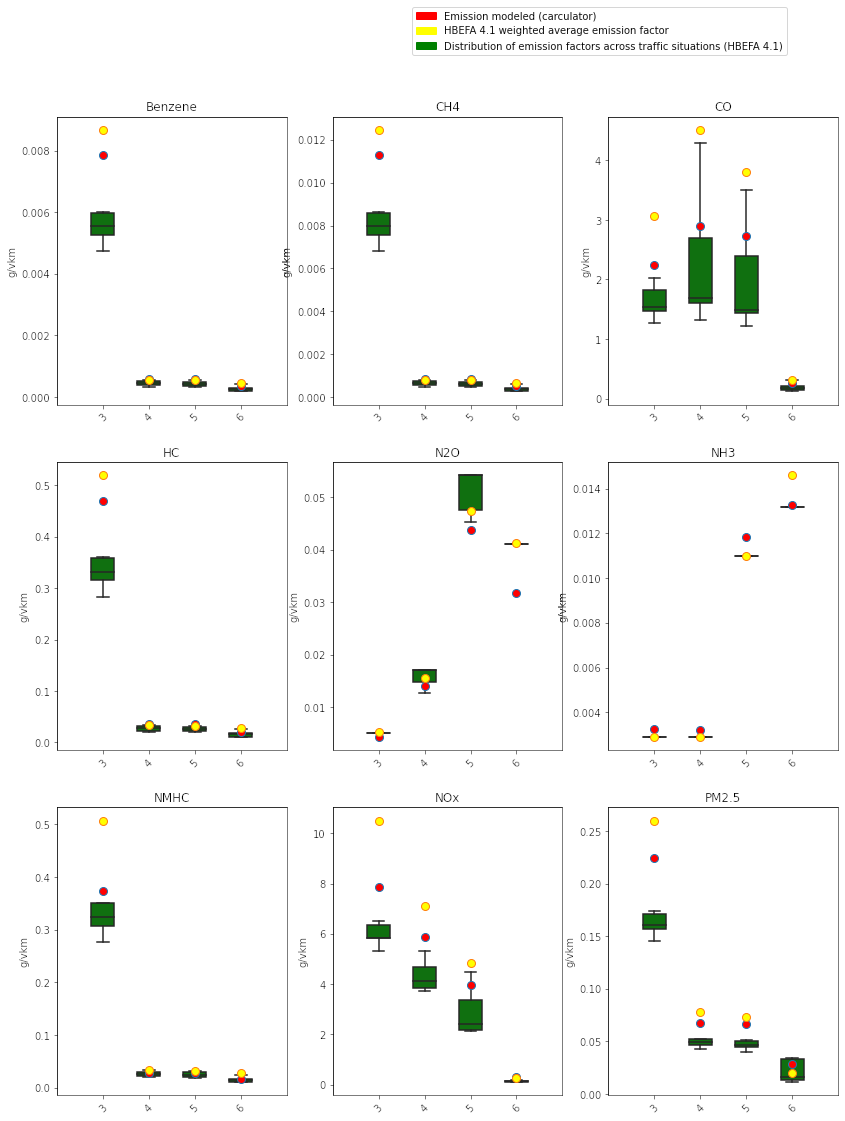

To confirm that such approach does not yield kilometric emissions too different from the emission factors per vehicle-kilometer proposed by HBEFA 4.1, Figure 11 compares the emissions obtained by carculator_bus using VECTO’s “Urban” driving cycle over one vehicle-km (red dots) for the “Single deck, city bus, 13m” with the distribution of the emission factors across different “urban” traffic situations (green box-and-whiskers) as well as the traffic-situation-weighted average emission factors (yellow dots) given by HBEFA 4.1 for various emission standards for a bus with a gross mass of 15-18 tons.

There is some variation across HBEFA’s urban traffic situations. Still, the emissions obtained remain, for most substances, within 50% of the distributed HBEFA values across traffic situations, except for N2O and NOx, which are slightly under and overestimated, respectively. Those two substances are also underestimated compared to the traffic situation-weighted average emission factors given by HBEFA 4.1, especially for early emission standards. These deviations can be explained by a different underlying driving cycle to calculate fuel consumption and related emissions. The comparison between the model’s emission results for the intercity driving cycle using coach buses and HBEFA’s emission factors for “rural” traffic situations shows a similar picture.

Modelling approach applicable to electric vehicles¶

City bus itinerary parameters¶

For electric buses, a few parameters affect their charging strategy and the sizing of the battery, and they are crucial to detail.

The second edition of the ZeEUS eBus project report [Guida and Abdulah, 2017] extracts statistics on routes serviced by electric city buses in Europe, presented in Table 11. It is found that motion-charging buses are operated significantly longer than depot- and opportunity-charging buses per shift (a shift is understood as the operation time between two deep charges at the bus depot). It is also found that opportunity-charging buses are operated over a slightly longer distance than depot-charging buses, although not to a significant extent. Based on the average distance driven per shift, the average operation time for each electric bus type is calculated. Because the resulting values for opportunity- and depot-charging buses are very close (i.e., 6.5 hours against 6 hours), a similar operation time of 6 hours is assumed. All these parameters are presented in Table 12.

For coach buses, it is assumed they drive 9 hours per day (corresponding to the limit set by the EU and Swiss legislation if only one driver is present).

Finally, using a pantograph system, opportunity-charging electric buses (BEV-opp) can charge once per trip. In-motion-charging electric trolleybuses (BEV-motion) follow an itinerary where 40% to 70% of the trip distance is equipped with overhead electrical lines to allow for charging, based on [Randacher and others, 2015] but also based on the battery capacity featured on current models on the market.

Traction energy¶

Electric vehicles¶

VECTO does not have a model for battery or fuel-cell electric buses. Therefore, constant efficiency values for the engine and drivetrain for electric buses in driving and recuperation mode from [Schwertner and Weidmann, 2016] are used. They are detailed in Table 13 and Table 14.

Energy Storage¶

Battery electric buses¶

The sizing of the energy storage unit for battery electric buses is sensitive to a few parameters, such as the operation time per shift, the number of charging opportunities per trip, the share of the bus line length equipped with overhead lines, and of course, the specific energy density of the battery cells and the amplitude of charge cycles. Furthermore, a 20% margin on the battery capacity is added for emergency or unexpected use.

The expected battery lifetime (and the need for replacement) is based on the expected battery cycle life, based on theoretical values given by [Dietmar and others, 2018] as well as some experimental ones from [Yuliya and others, 2020]. Although the specifications of the different battery chemistry are presented in Table 15

Given the vehicle’s energy consumption and the required battery capacity, carculator_bus calculates the number of charging cycles needed and the resulting number of battery replacements, given the chemistry-specific cycle life of the battery. As discussed at the beginning of this report, the expected cycle life is corrected.

Considering the chemistry-specific cycle life values, there is a difference in the extent battery cell degrades over charging cycles. It is explained by the fact that Li-LTO batteries are charged with a smaller charge cycle amplitude (about 40-50%, against 80% for Li-NMC batteries). This also leads to an important sizing factor. The Li-NMC battery of the BEV-depot bus needs replacing multiple times during the vehicle’s lifetime, while the Li-LTO battery of ultra-fast charging buses only requires one replacement. The number of replacements is even higher when using Li-NCA batteries, as the expected cycle life is comparatively lower.

Table 16 shows the battery sizing factors considered.

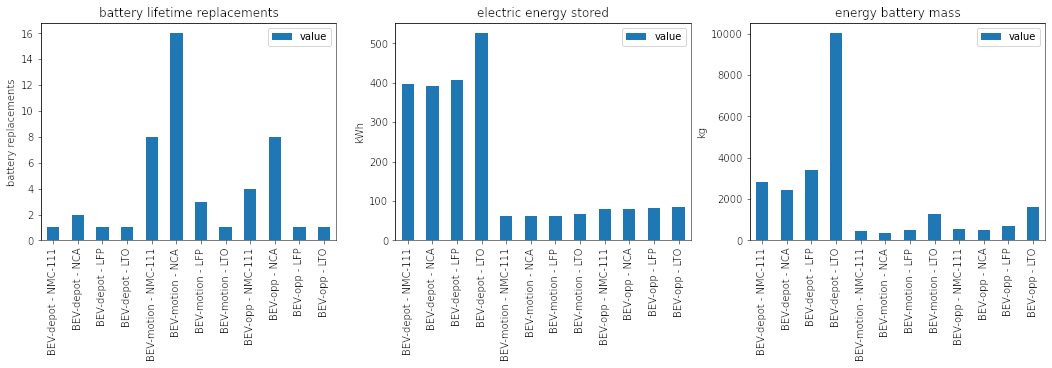

The effect of switching the battery chemistry for each type of electric bus can be quantified, as Figure 12 illustrates. While Li-LFP and Li-LTO batteries lead to fewer replacements, they are also heavier and result in higher energy consumption – and the necessity to increase the battery storage capacity consequently.

Table 17 indicates the number of battery replacements considered for each type of battery chemistry.

Fuel cell electric buses¶

The energy storage unit of fuel cell electric buses is sized based on the required amount of hydrogen onboard (i.e., defined by the required range autonomy). The relation between hydrogen and tank mass is derived from manufacturers’ specifications – mainly from [Thanh and others, 2010, Quantum, 2019], as shown in Figure 13.

We start from the basis that fuel cell electric buses are equipped with 650 liters cylinders, which contain 14.4 kg hydrogen at 700 bar, for an (empty) mass of 178 kg. The required size and mass of the tank eventually depend on the number of hours of service but should not exceed 300 kg, excluding the hydrogen.

The hydrogen tank is of type IV, a carbon fiber-resin (CF) composite-wrapped single tank system, with an aluminum liner capable of storing 5.6 kg usable hydrogen, weighting 119 kg per unit (of which 20 kg is carbon fiber), which has been scaled up to 178 kg for a storage capacity of 14.4 kg to reflect current models on the market [Quantum, 2019]. The inventories are initially from [Thanh and others, 2010]. The inventories for the carbon fiber supply are from [Alicia and others, 2021]. Note that alternative hydrogen tank designs exist, using substantially more carbon fiber (up to 70% by mass): this can potentially impact results as carbon fiber is very energy-intensive to produce.

Inventories for Type IV hydrogen tanks from [Alicia and others, 2021] are used to that effect.

Compressed gas buses¶

For compressed gas buses, the energy storage is in a four-cylinder configuration, with each cylinder containing up to 57.6 kg of compressed gas – 320 liters at 200 bar.

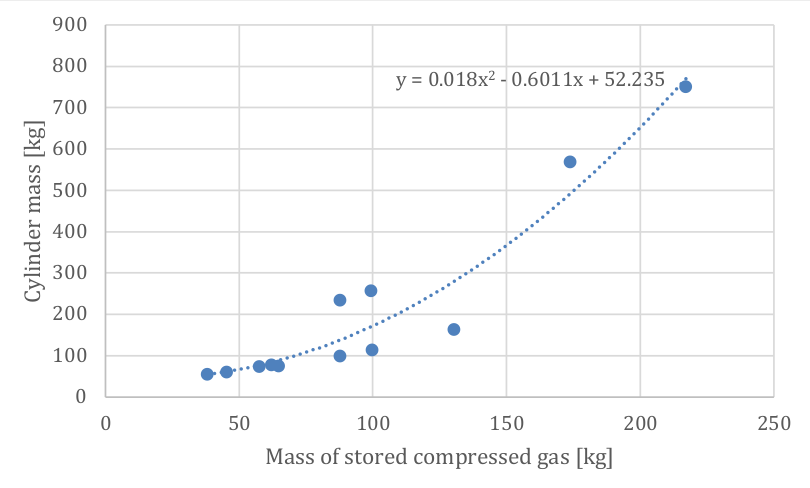

The relation between the compressed gas and the cylinder mass is depicted in Figure 14. This relation is based on manufacturers’ data – mainly from [Trucks, 2017, QTWW, 2021].

Inventories for a Type II 200-bar compressed gas tank with a steel liner are from [Daniele and others, 2021].

Charging stations¶

The parameters for the different charging stations modeled are presented in Table 18.

Finding solutions and validation¶

Very much like carculator and carculator_truck, carculator_bus iterates until:

• the change in curb mass of the vehicles between two iterations is below 1%

All while considering the following constraints:

• For all buses, the driving mass when fully occupied cannot be superior to the gross mass of the vehicle (this is specifically relevant for BEV buses)

• For all buses, but particularly relevant for electric buses, the curb mass should be so low as to allow a 50% increase in the average number of passengers (i.e., during peak hours), all while staying under the permissible gross weight limit.

• Coach buses cannot be considered for opportunity and in-motion charging strategies.

• For BEV-depot buses, the capacity of the battery must be so that it gives enough time to charge it overnight to be ready for the next shift.

Validation¶

Manufacturer’s specifications¶

The bus models generated by carculator_bus are validated against the specifications found in the literature and manufacturers’ data – available in Annex C of this report. For electric buses, most of the specifications obtained (i.e., battery capacity, motor power, curb mass) are from the ZeEUS project report [Guida and Abdulah, 2017].

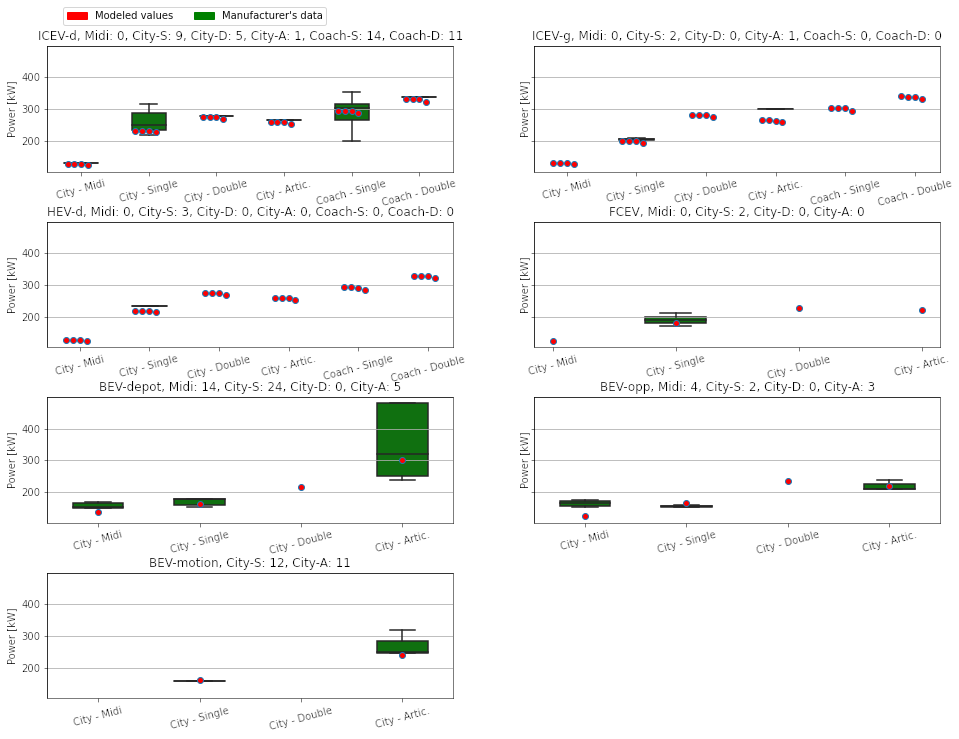

The model returns curb masses and engine and electric motor power output values that largely agree with current European models, as shown in Figure 15 and Figure 16 respectively.

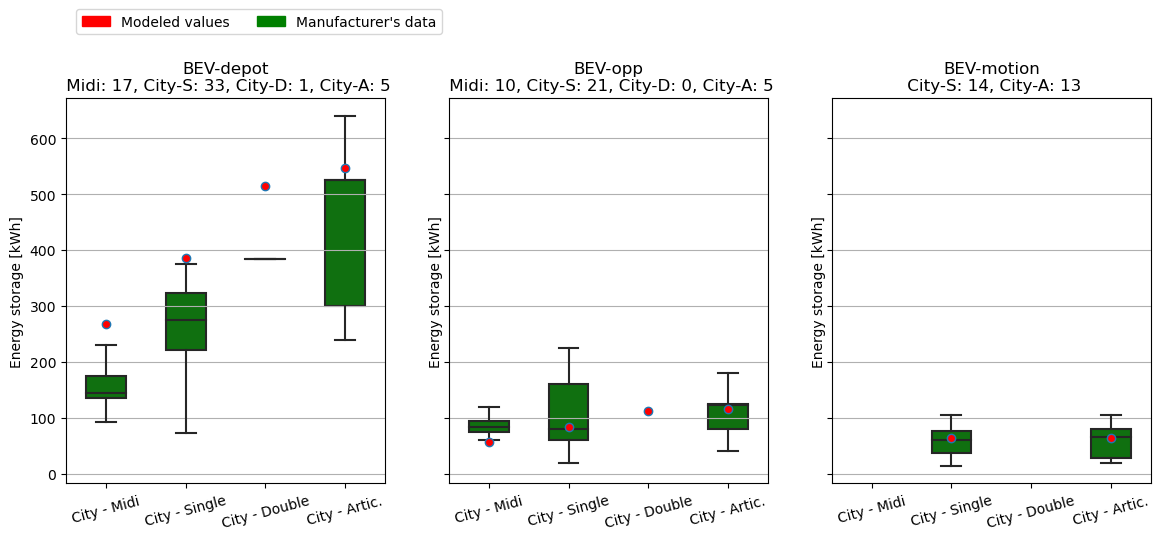

The comparison between the modeled battery energy storage capacity for battery electric buses and what is currently found on the market in Europe is shown in Figure 17. For BEV-depot buses, the model returns a battery capacity significantly higher than the median for European buses: based on personal communication with INFRAS, there is a tendency in Switzerland to purchase depot-charging electric buses with a battery capacity higher than average. It is, for example, the case with MAN’s Lion’s City electric bus models, which feature a 480 kWh and 640 kWh battery for the 12-meter and 18-meter versions, respectively. This overestimate is an attempt to reflect that trend partially.

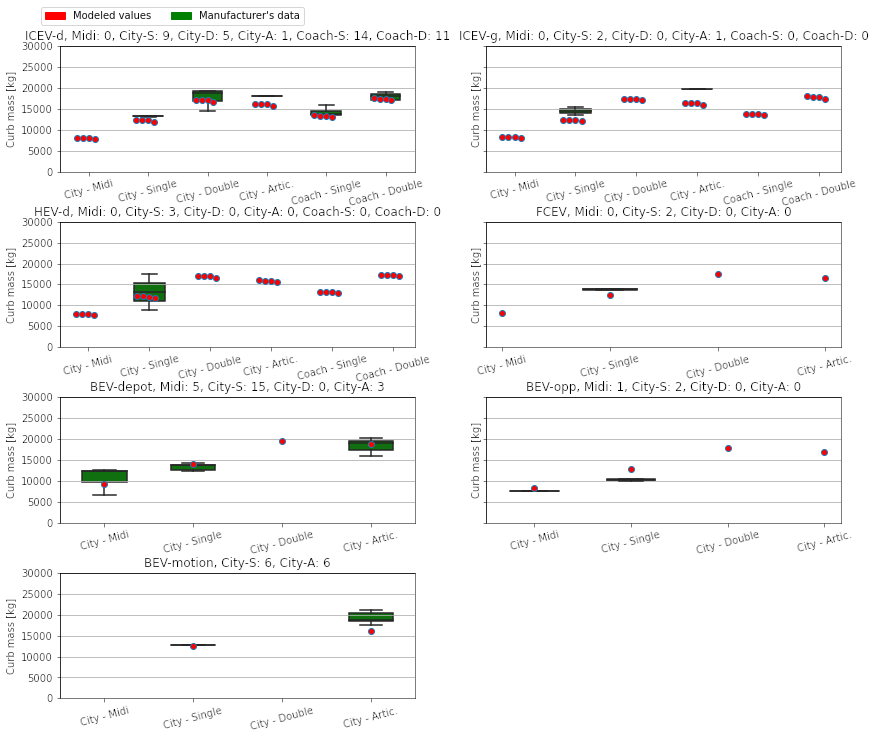

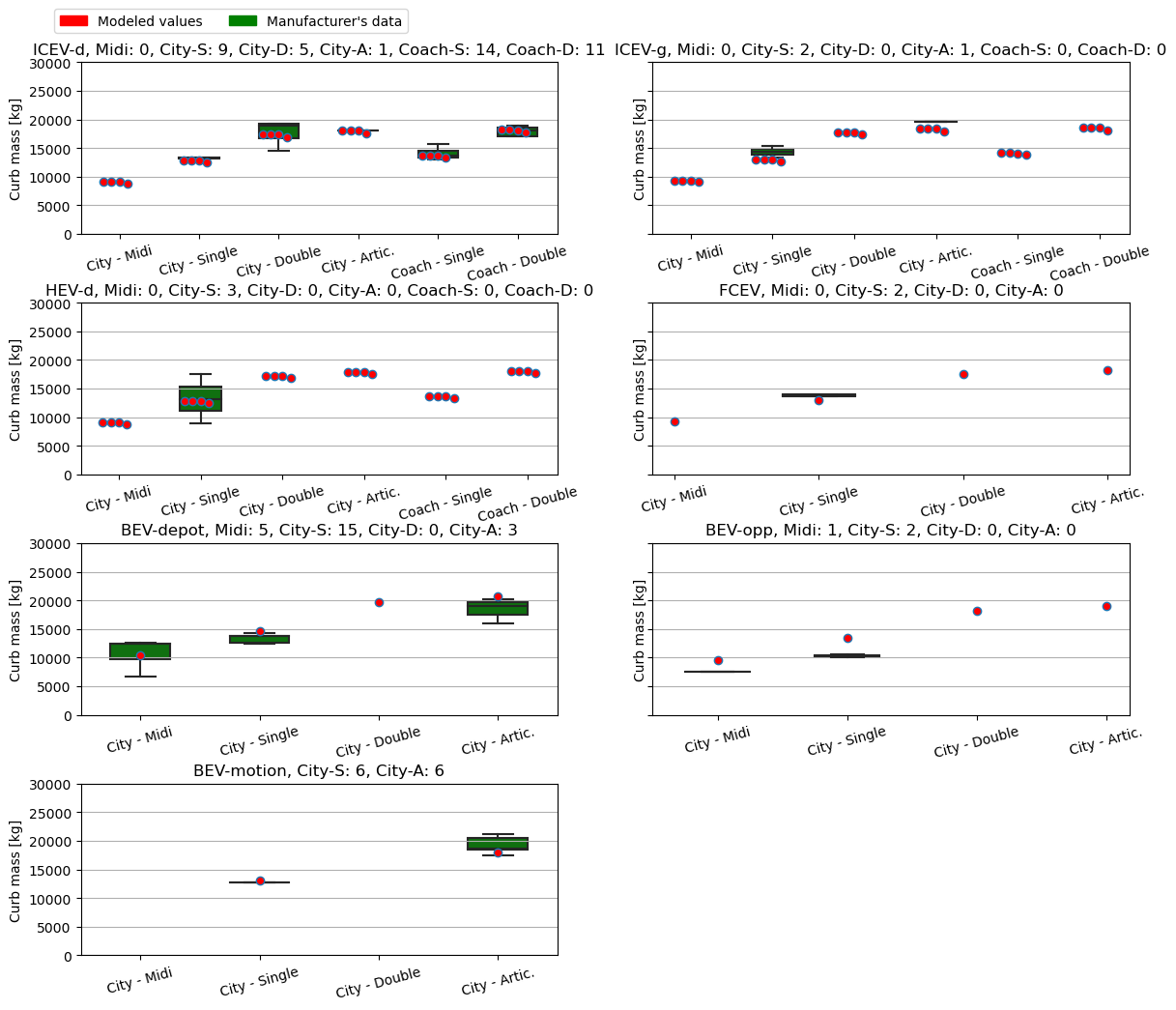

The resulting curb mass for each bus model is within the range given by the different models operated in Europe, as shown in Figure 18.

HEBFA’s data¶

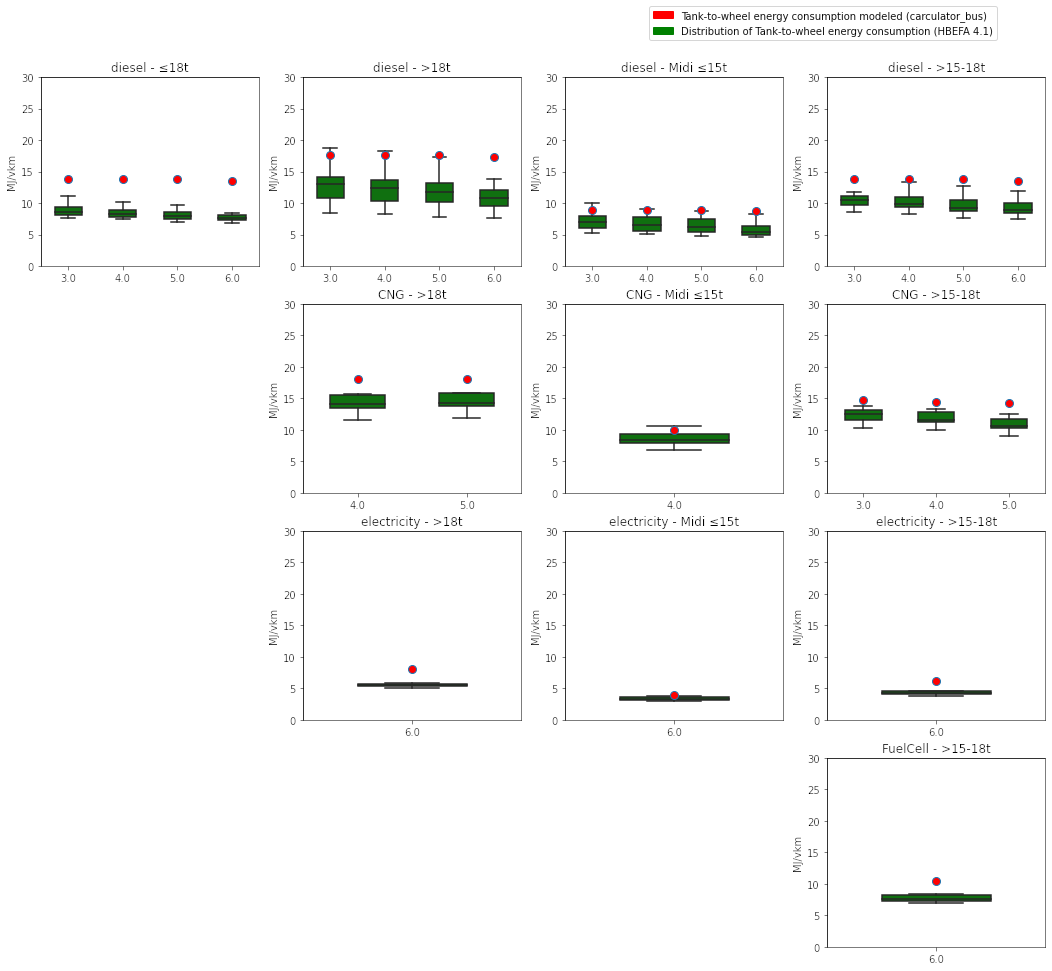

Figure 19 compares the tank-to-wheel energy consumption modeled for urban buses with the values obtained from HBEFA 4.1 for urban traffic situations. HBEFA’s size class “Midi <= 15t” corresponds in this case to “Midibus, 9m”, “<= 18t” and “15-18t” to “Single deck, city bus, 13m”, and “>18t” to “Single deck, city bus, 18m”. Overall, carculator_bus provides slightly higher energy consumption numbers for diesel and compressed gas city buses than those collected from HBEFA 4.1. This could be explained by the driving cycle from VECTO being more demanding in accelerations and stops.

Figure 20 compares the tank-to-wheel energy consumption modeled for coach buses with the values reported from HBEFA 4.1 for rural traffic situations. HBEFA’s size “<= 18t” and “15-18t” are matched with “Single deck, coach bus, 13m” and “>18t” to “Double deck, coach bus, 13m”. There is a good agreement between the energy consumption values for coach buses modeled by carculator_bus and those from HBEFA 4.1.
